Multi-Pole Tubular Sliding Contact Line

I. Product Overview of Multi-Pole Tubular Sliding Contact Line:

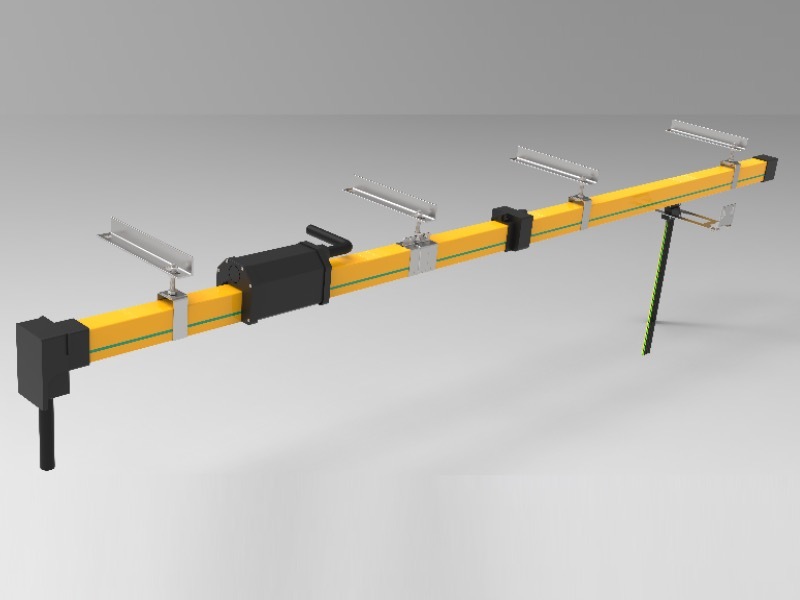

The carbon brush collector sliding line guide rail is embedded with multi-pole copper bars as the power transmission busbar in a semi-enclosed engineering plastic conduit with high strength and high insulation performance.

2. The carbon brush collector sliding line guide rail is made by embedding copper bars with engineering plastics of high insulation performance into high-rigidity aluminum alloy tubes as power transmission busbars. This series of products was developed and produced by our company based on the digestion of advanced foreign technologies.

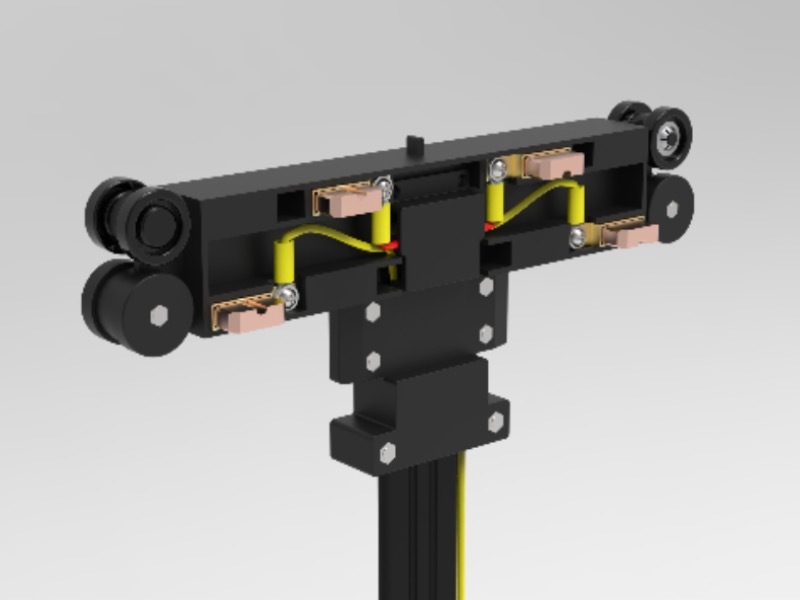

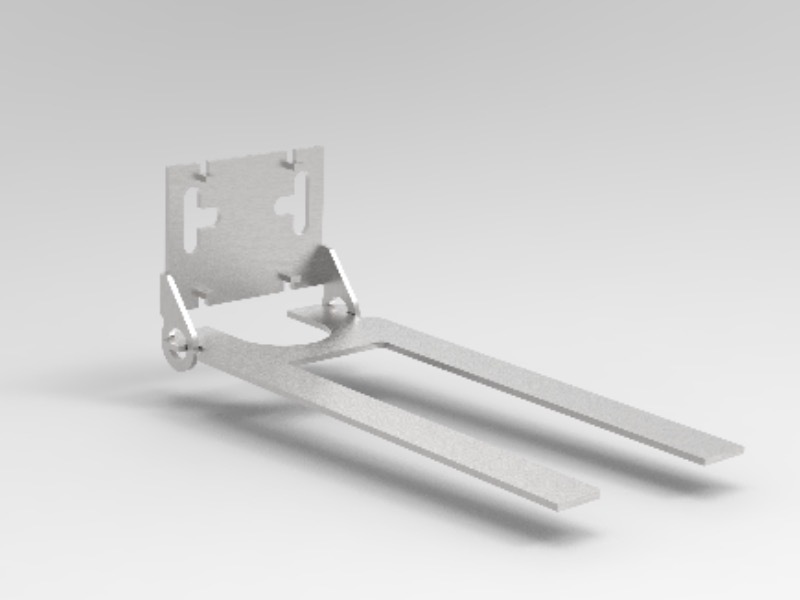

3. Inside the conduit, there is a compact and flexible collector trolley that moves synchronously under the drive of the moving power receiving equipment. Meanwhile, through the sliding contact of the multi-pole brushes configured on the collector on the guide rail, the power supply on the guide rail is reliably transmitted to the mobile power-receiving equipment.

Ii. Features and Applications of Multi-pole Tubular Sliding Contact Line Products:

The enclosure protection grade of the product is IP23. The semi-enclosed structure causes no harm to the operators and maintenance personnel when they come into contact with the outside of the conduit.

2. The current density of the copper busbar for power transmission is high, the impedance is low, and the line loss is small. The brush has excellent flexibility and self-lubrication. The collector moves flexibly, has good directionality and good contact, effectively controlling the contact arc and arc series phenomenon.

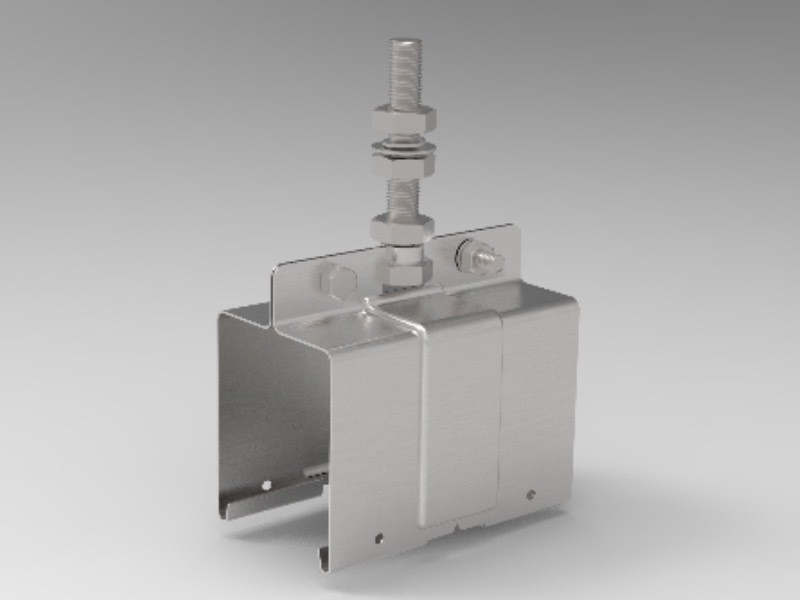

3. The multi-pole transmission busbars are concentrated in one conduit, making installation very convenient. Its fixed brackets, connectors and suspension devices are all provided in accordance with standards, making installation, disassembly, adjustment and maintenance very convenient.

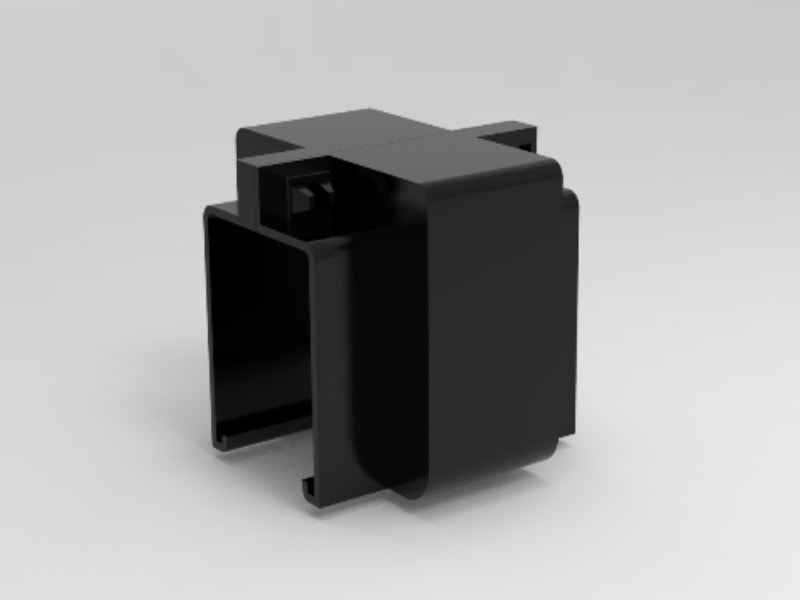

4. The product is composed of power transmission conduits, collectors, orthogonators or synchronizers, rail connectors, thermal expansion compensation devices, and suspension devices. All kinds of accessories are complete to meet the requirements of different occasions.

5. The product is applicable to mobile power receiving equipment such as electric hoists, electric bridge cranes, gantry cranes, stackers, and mobile power tools, as well as fixed busbar laying in automatic production lines, inspection lines, factories, mines, and workshops of industrial products.

Storage and transportation of multi-pole tubular sliding contact lines: The main and auxiliary components of power supply sliding contact lines are packed in separate boxes. For easily damaged parts, they are isolated from rotation by shockproof materials. However, it is still necessary to pay attention to preventing violent collisions or inversion to avoid damage. When the power supply sliding contact line arrives at the unit and is not to be installed for the time being, its storage should have good ventilation and dryness, and should be kept away from high temperatures, heat sources and high-temperature areas as much as possible.
