Rigid body sliding contact line
Rigid sliding contact line

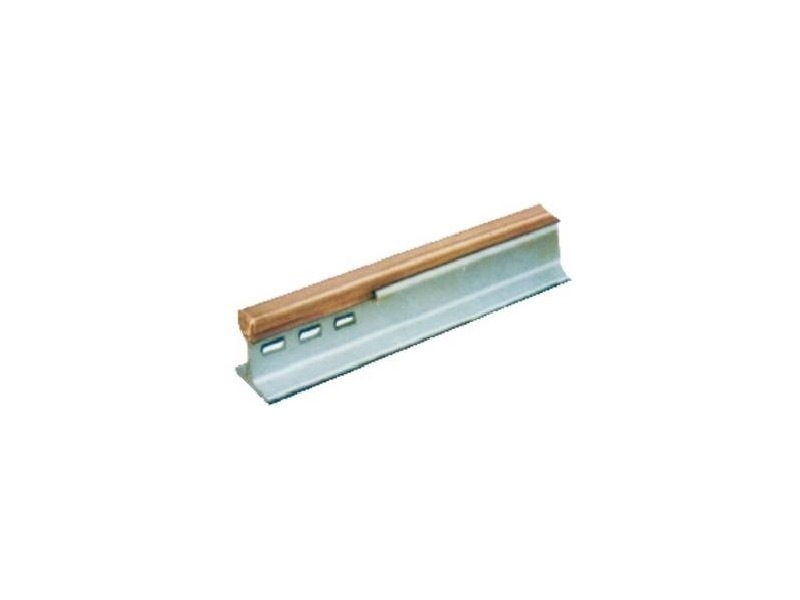

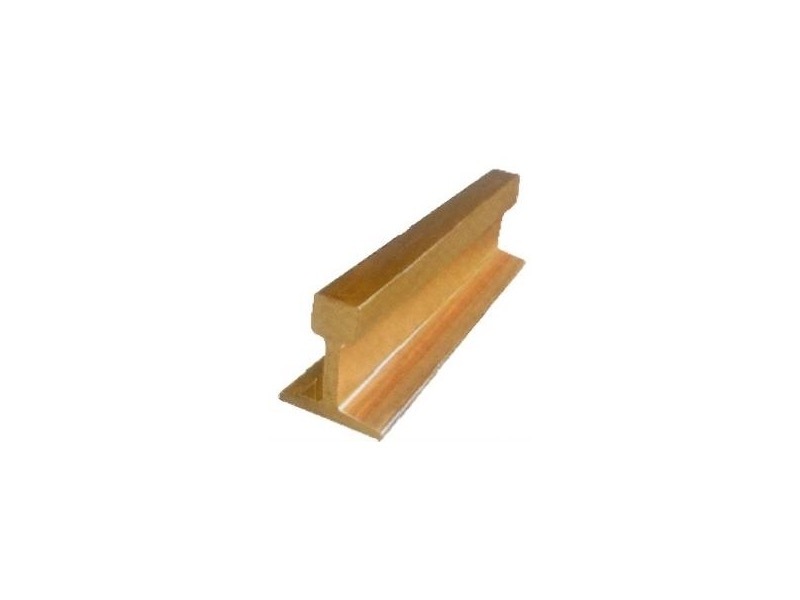

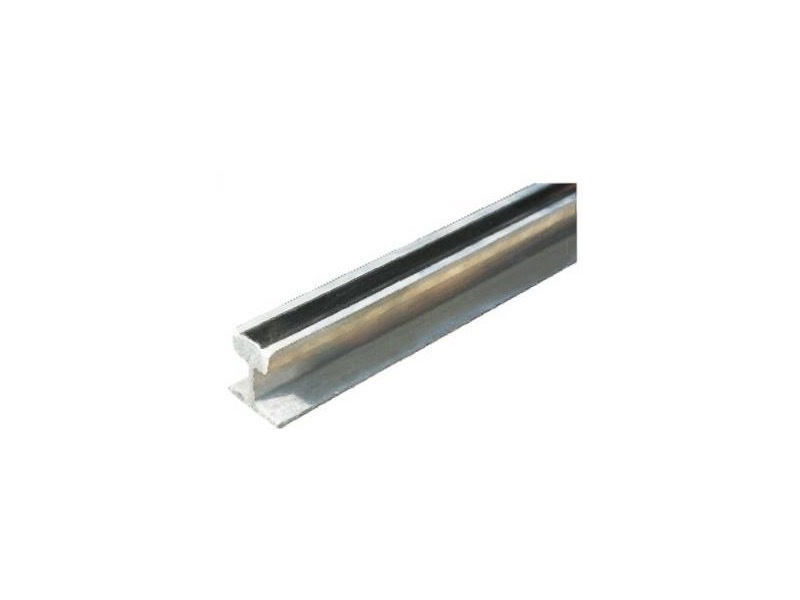

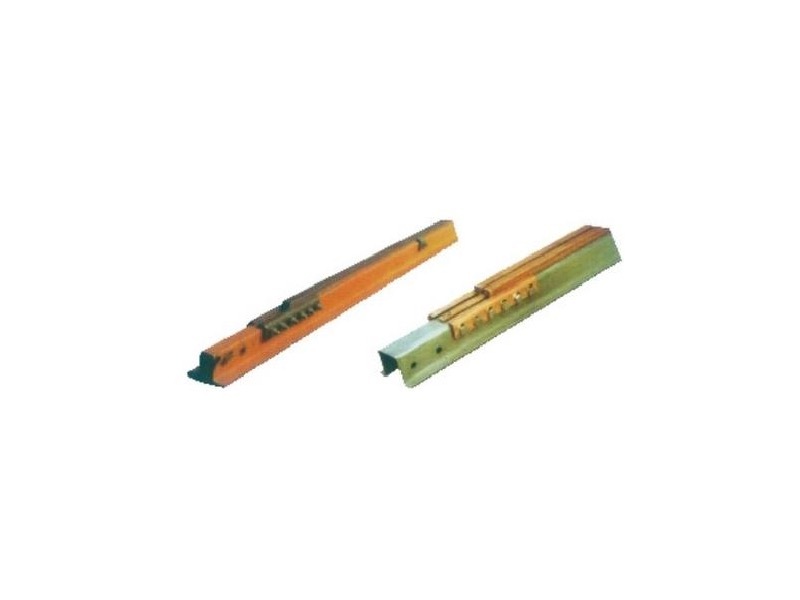

The rigid sliding contact line is composed of ladder-shaped copper rods and channel steel or "T" -shaped steel bars and channel aluminum combined and dovetail channel copper rods and high-rigidity I-beams, supported by high-strength special insulators, thus forming a mobile sliding contact line for power supply to various lifting machinery and equipment.
- Information
Rigid sliding contact line
The rigid sliding contact line is composed of ladder-shaped copper rods and channel steel or "T" -shaped steel bars and channel aluminum combined and dovetail channel copper rods and high-rigidity I-beams, supported by high-strength special insulators, thus forming a mobile sliding contact line for power supply to various lifting machinery and equipment.
Product features of rigid sliding contact line:
It operates reliably and will never experience power interruption faults.
2. It can be used in harsh environments such as high temperatures, high dust levels, and highly corrosive gases.
3. It has high mechanical strength, is not easy to bend or deform, and can withstand strong short-circuit impact currents.
4. The current-carrying capacity can be set according to the user's needs, with a maximum of over 3000A. The voltage and other aspects can reach above 5KV.
5. The use of copper or copper-aluminum conductors can significantly reduce the power loss of the wires.
After adding auxiliary cables, a low-impedance sliding contact line can be formed, and the reactance of the conductor is reduced several times.
7. Wiring can be done by sliding contact at the top, side or bottom.
8. The sliding contact line features an extremely large heat dissipation surface and a compact and simple structure. It has the advantages of convenient installation and maintenance, etc.

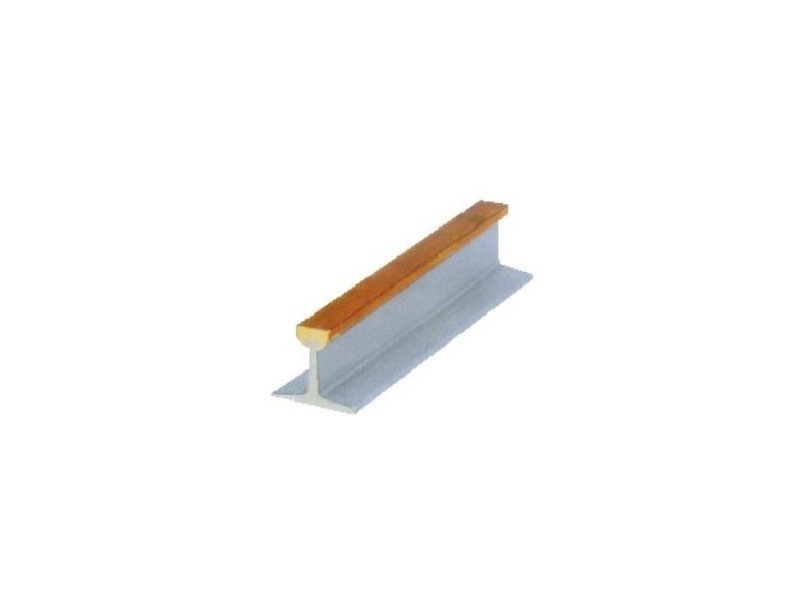

9. The JGH type is composed of dovetail groove copper rods and high-strength I-beams. Its embedding process ensures a tight bond between the copper rods and the I-beams.
