Classification and equipment description of sliding contact line

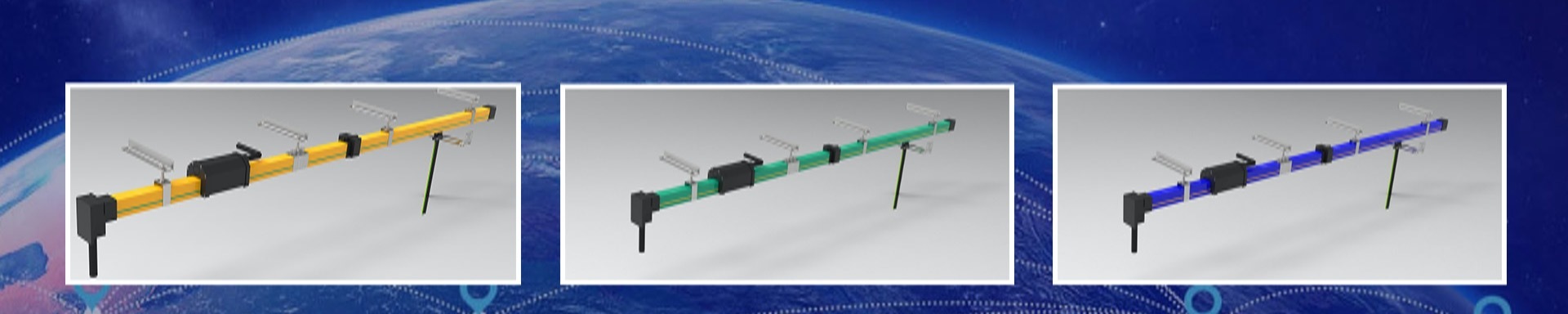

Sliding wire, also known as sliding wire, is a group of transmission equipment that supplies power to mobile devices. It is mainly divided into single-pole aluminum sliding line, single-pole copper sliding line, steel body sliding line, multi-pole tube sliding line, jointless sliding line, copper contact line and other commonly used sliding line. Single-pole sliding line, multi-pole tube sliding line, seamless sliding line belongs to safe sliding line, steel body sliding line belongs to non-safe sliding line.

Before the equipment slides into the wire, the Angle steel bracket shall be fixed according to the equipment form selected by the user and the suspension distance of the slide into the wire. The required suspension seat shall be put on the slide into the wire every 6 meters at the equipment site, and one of the two connector jackets shall be installed on one end of the aluminum connector. When installing the aluminum connector, it shall be noted that only 1/2 of the aluminum guide rail into the connector can be left for the other guide rail to connect. After the above work is ready, hang the sliding contact wire one by one on the support, and connect the whole line, and tighten the screws of each joint when connecting. When the whole length of the sliding contact line exceeds 200 meters, elastic equipment should be installed (elastic equipment is supplied by the factory at any time). When connecting the power cord into the line, it can be connected at the junction of one piece every 6 meters.

When the equipment touches the line in the curve, the suspension distance should be shortened accordingly, and the specific size can be determined according to the site conditions.

First install the electrical guide on the matching square tube, select the appropriate position to cooperate with the sliding contact line to fix on the electrical equipment, it should be noted that in order to make the electrical guide and the sliding contact line have good tracking performance and good contact ability, the electrical guide and the sliding contact line should be in the same straight and horizontal direction.

Safety sliding wire equipment indicator light is essential, sliding wire indicator light can play an indication, warning, current display and other effects. Through the indicator light, you can clearly see whether the power of the sliding contact line is normal. Secondly, generally speaking, the slide contact line indicator is used to show the power status of the slide contact line, but it also has night indications, lighting and other related effects, equipment slide contact line indicator can improve the efficiency of maintenance personnel, workshop lifting operators, together to reduce the workshop safety hazards.

A sliding contact wire device is a system used for mobile power supply (abbreviated to sliding contact wire). Sliding contact line, the scientific name of sliding conduction electrical equipment, the full name of safety sliding transmission equipment. Its structure is diverse, but the general principle is as follows: mobile devices because mobile, demand constantly change the position, in each different position, mobile devices should be able to obtain power at any time, otherwise it can not continue to move.

At this point, the sliding line came into being. A number of conductors are laid in parallel along the working track of the mobile device and connected to the power supply. On a mobile device, a collector on the device that can take electricity from a conductor. In this way, when the device moves, the collector works synchronously with the device and obtains power from the conductor at any time to provide the device so that the device can continue to move. The device composed of these conductors and the collector is called a sliding contact line.

The sliding line is mainly used for all kinds of lifting and transporting machinery, production lines and other mobile power supply equipment and places, such as cranes, loading Bridges, electric hoists, three-dimensional warehouses, amusement equipment, air conditioning inspection line, etc., widely used in lifting and transporting, electric power, shipbuilding, port, metallurgy, mining, water plant, environmental protection, chemical industry, home appliances, cars, clothing, tobacco and alcohol, amusement and many other work.

The above is about the content of the sliding contact line.
